Dual power supply redundant backup: 7*24 hours stable operation. Dual host redundancy backup: automatic and seamless switching between master and backup, and backup and master in case of failure. Dual control card backup: Deploy one main and one secondary control card in the host for simultaneous operation. Fiber optic redundancy backup: build dual fiber optic links to ensure high availability of equipment and links. Optical network dual-core backup: dual-core four-link backup, senseless switching.
Ultra-large-scale application: up to 768 inputs/outputs by stacking, flexible configuration according to the usage scenario. Multi-region interoperability: In multi-region interoperability, each room is configured with one host, simple wiring; assign independent rights. Flexible Expansion: When designing in the early stage, there is no need to reserve too many redundant interfaces, and when expanding in the later stage, by adding KVM hosts or upgrading the stacked hosts, it can realize upgrading of the original system and unified management.
Through the fiber optic KVM seat collaboration management platform to achieve different business systems, different resolution data types unified access control, Changtu ZMAX fiber optic non-IP seat management system to support theater-level 4096*2160@60Hz, resolution backward compatibility, lossless transmission of picture quality, YUV4:4:4 native picture quality transmission.
Adopting unique self-developed transmission algorithm, 4μs extremely low latency, up to the effect of direct cable connection, comprehensively improve the operating experience and work efficiency, will not be due to the problem of latency, bringing risks to the system.
ZMAX fiber optic convergence box into the CVS distributed system switch, to achieve IP and non-IP system integration, to achieve interconnection, interoperability, mutual control, on-screen, etc., at the same time, a software platform can be unified management and control, which can be used for project upgrading and transformation, complex projects, such as hybrid design scenarios.

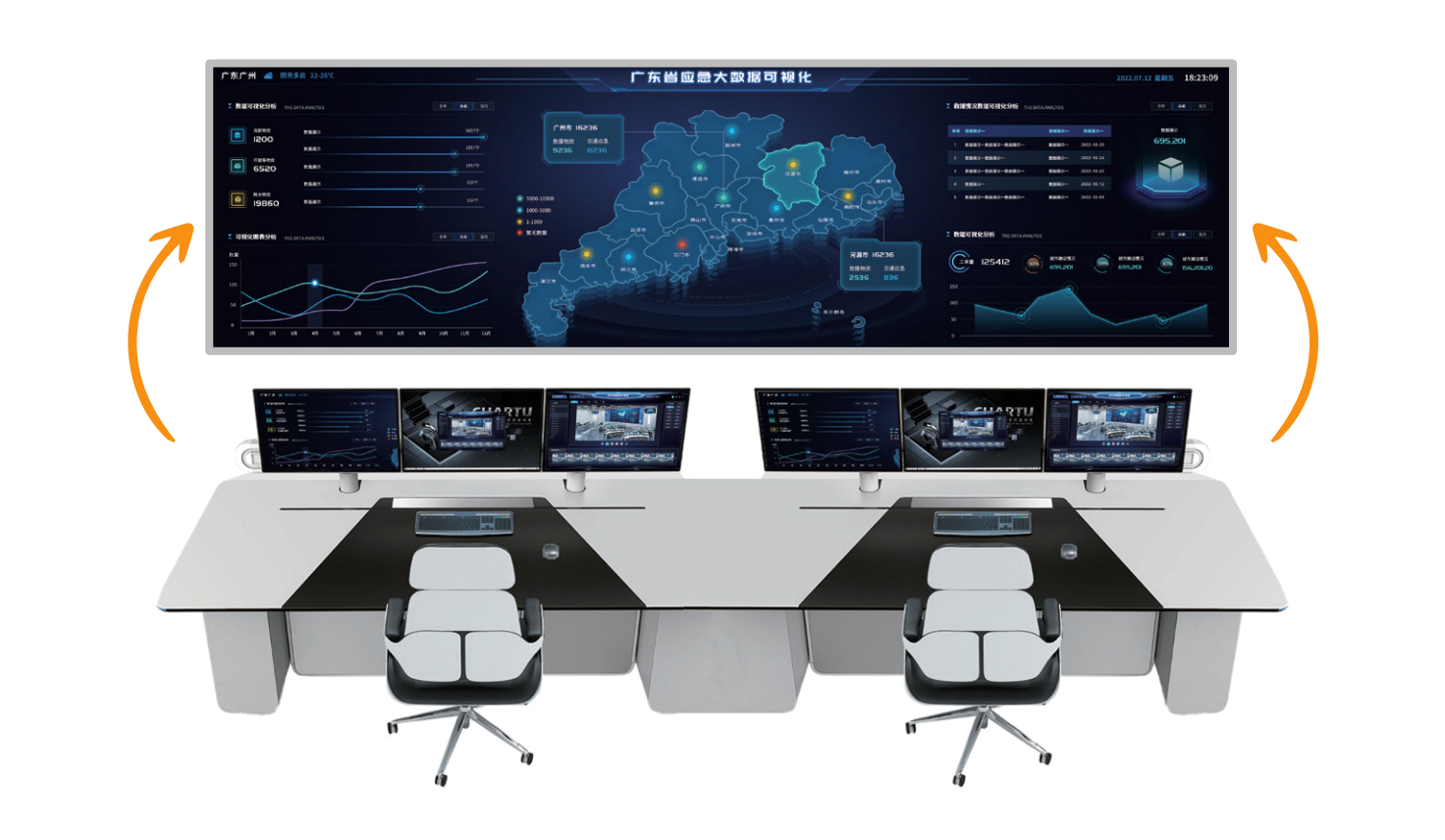

Realize any seat one-key push on the screen scene, realize any custom hot key, you can one-key local seat signal extremely fast push on the big screen or seat scene, truly realize “what is manipulated is seen”.

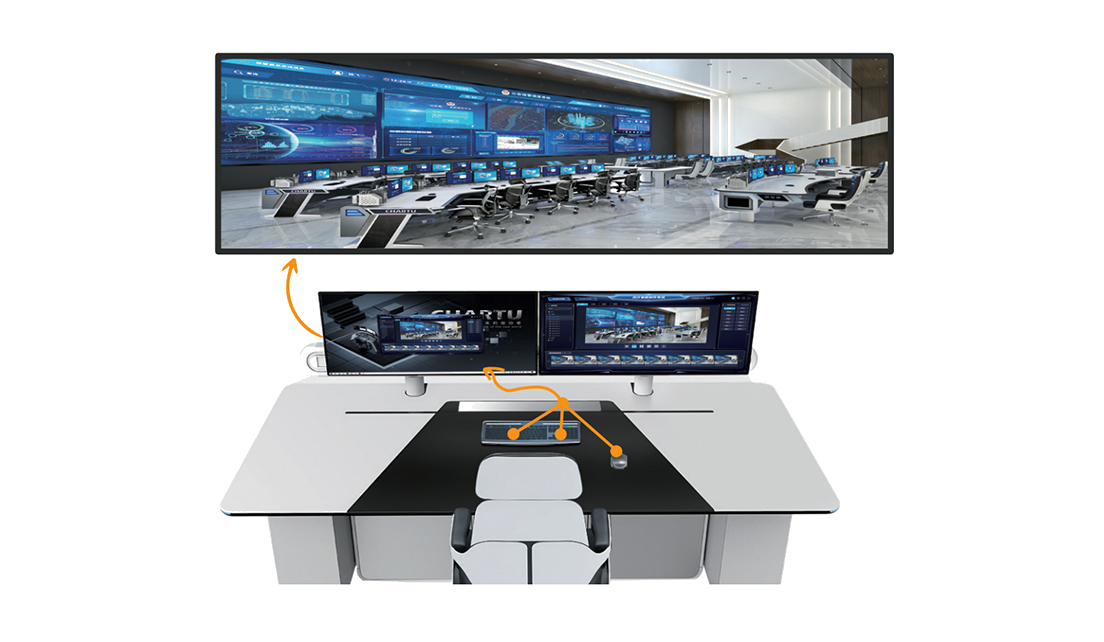

The operator can directly control the business host signal accessed on the display screen through the OSD menu, and according to the window signal source display, the mouse can drag the signal source on the screen to realize the fast and accurate signal source switching and big screen interaction, which greatly improves the operation efficiency of the seat workstation.
It supports voice broadcasting and voice intercom communication between seats. It realizes resource sharing and interoperability across departments, levels and regions, strengthens multi-party collaboration, enhances the operational efficiency of synthetic warfare and maximizes the overall synergy.
Realize multi-computer operation scenarios for any seat on one screen, a screen displaying signals from multiple hosts, no cross-disclosure of information, easy to realize cross-network, cross-platform and cross-system operation, and fully improve the efficiency of the operators when dealing with large amounts of concurrent data.
Support large-scale 4096x2160@60Hz signal splicing on the screen, to realize any open window, roaming, superimposed and other operations, no delay, no lag, ultra-smooth.
Access to the system's high-definition video signal can be in the control software real-time dynamic preview, with a large screen back to the function, the current screen can be in the control software real-time dynamic display.

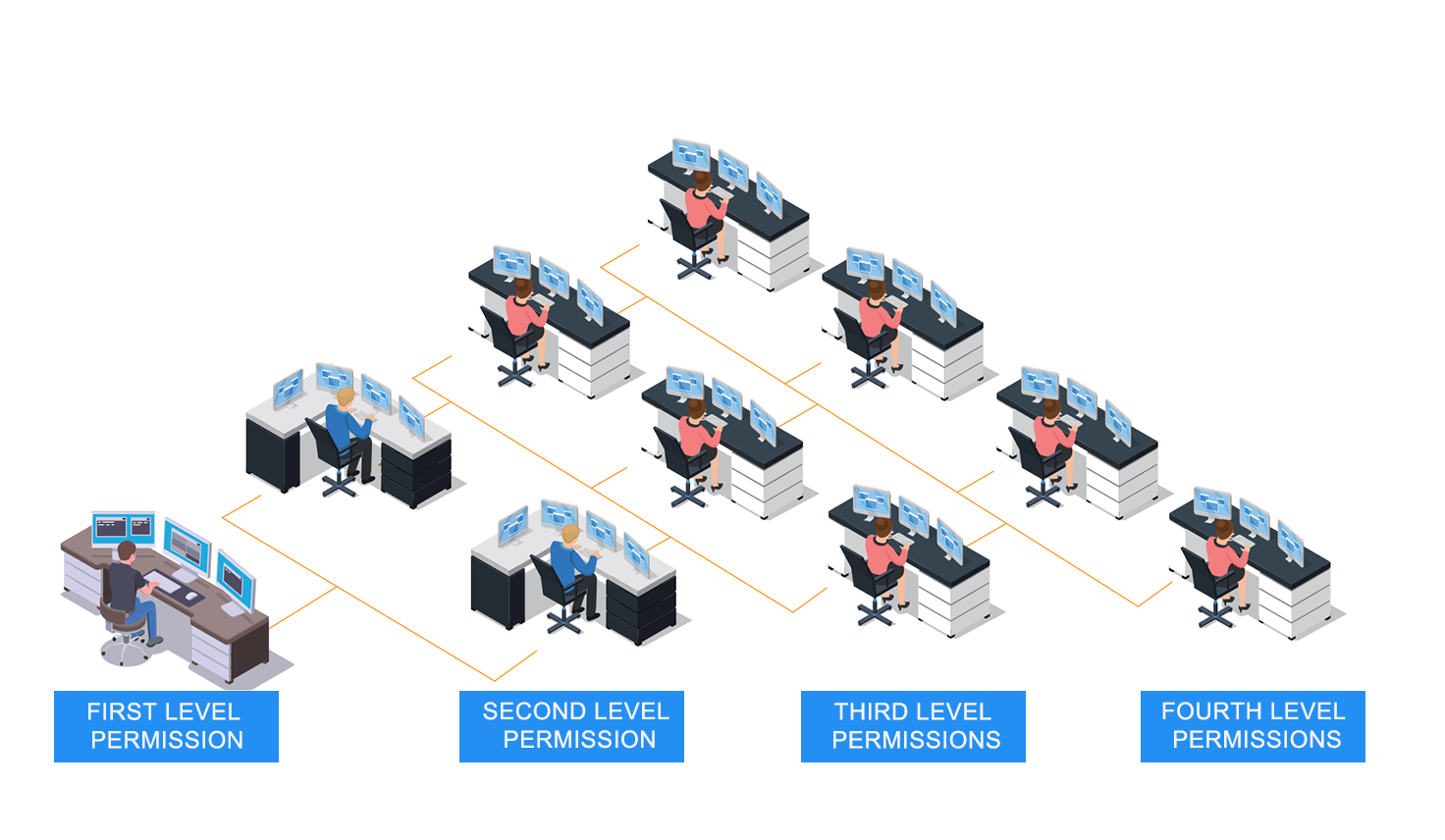

The system can set user rights and console rights, different operators have different control rights, support partition control function, to protect the smoothness of the collaborative process and system security control.
The computer mainframe is placed in the computer room for unified management and human-computer separation, which improves data security, reduces noise, saves space, simplifies wiring, good heat dissipation, and makes management more humanized and efficient.
