output board

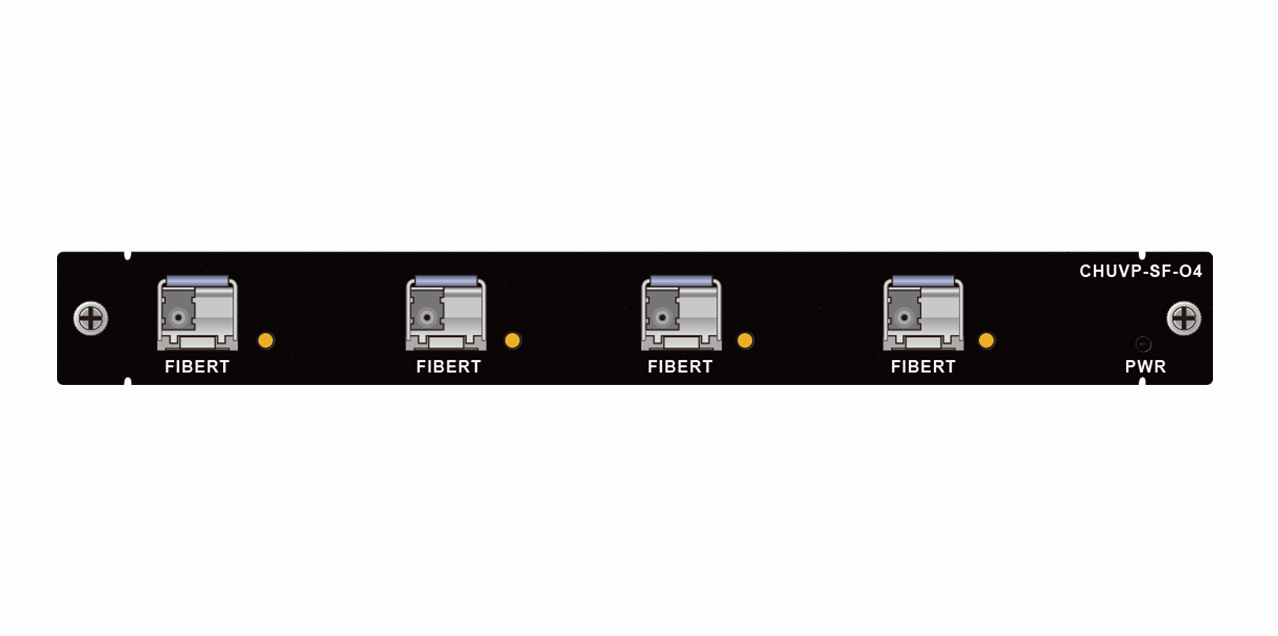

Fiber optic output board card

Supports 4-channel 4096*2160@60Hz resolution output, YUV4:4:4 lossless transmission; supports hot swapping; works with fiber optic box to enable KVM functionality;

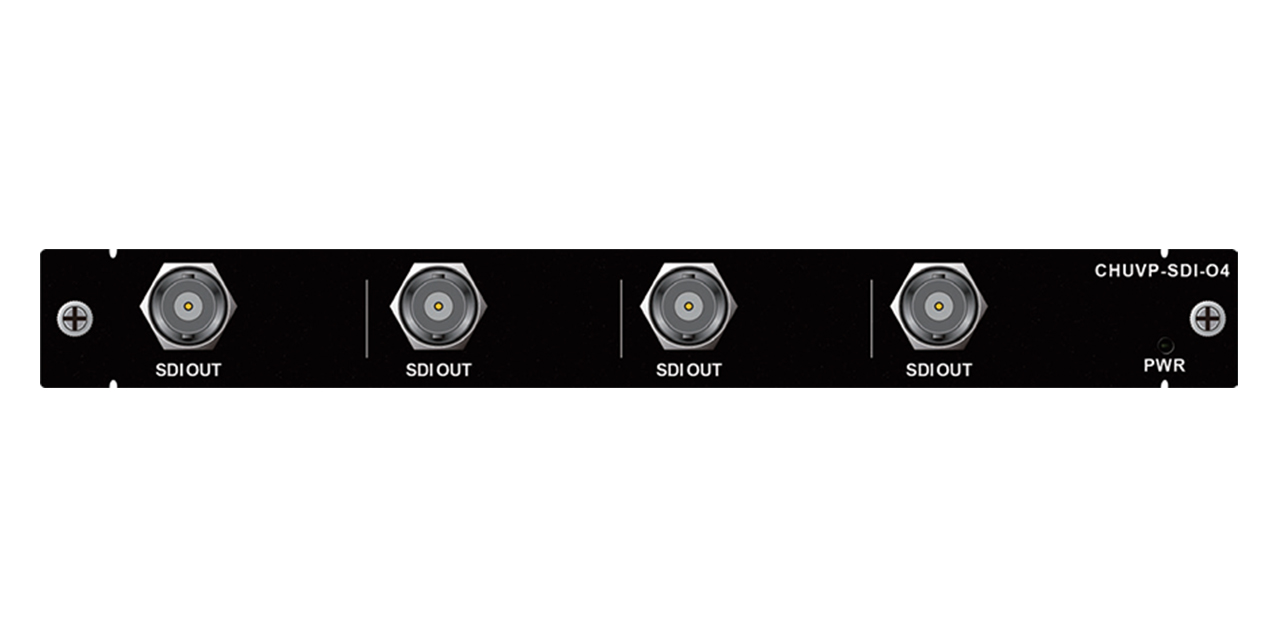

12G-SDI output board card

Supports 4 channels of 3480 x 2160 @ 60Hz, YUV 4:4:4 lossless transmission, with a transmission rate of no less than 12 Gbit/s for video output. Resolution and frame rate are backward compatible with standard resolutions.

HDMI dual-layer splicing output card

Supports 4-channel HDMI interface output; features a splicing function; supports hot-swapping; each screen can open 2 windows, with signals that can be overlaid, roamed, and scaled arbitrarily;

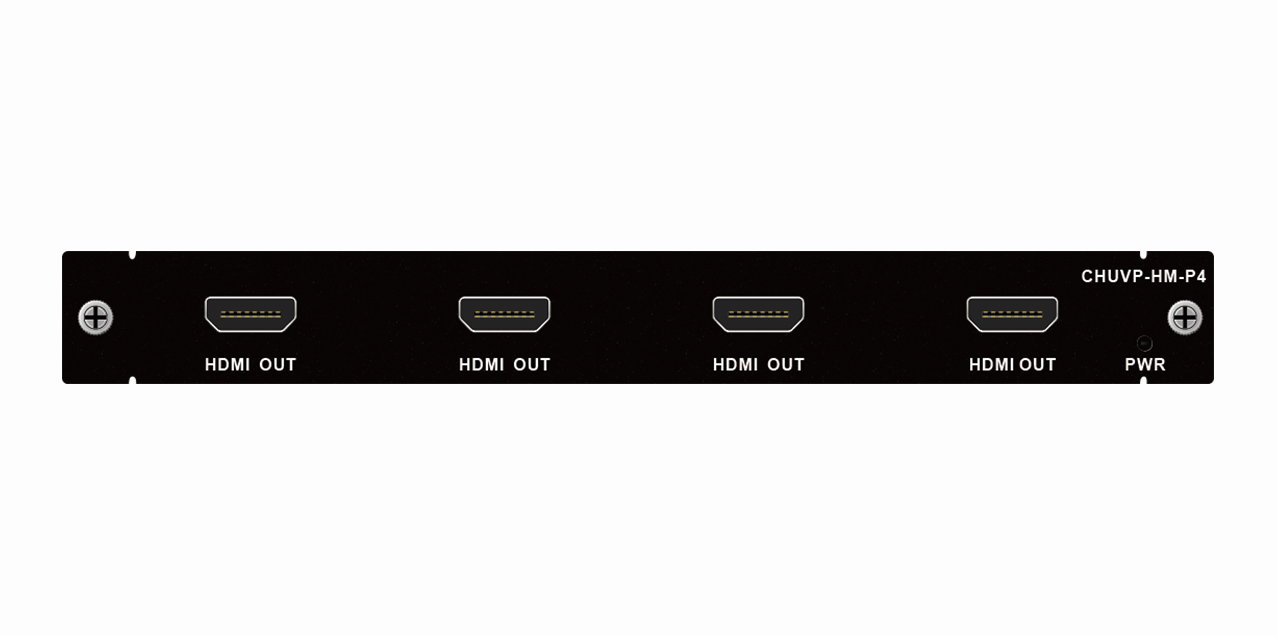

HDMI Quad-Layer Splicing Output Card

Features splicing functionality; supports hot-swapping; supports up to 4 windows on a single screen, with signals that can be overlaid, roamed, and scaled arbitrarily; supports EDID reading functionality;

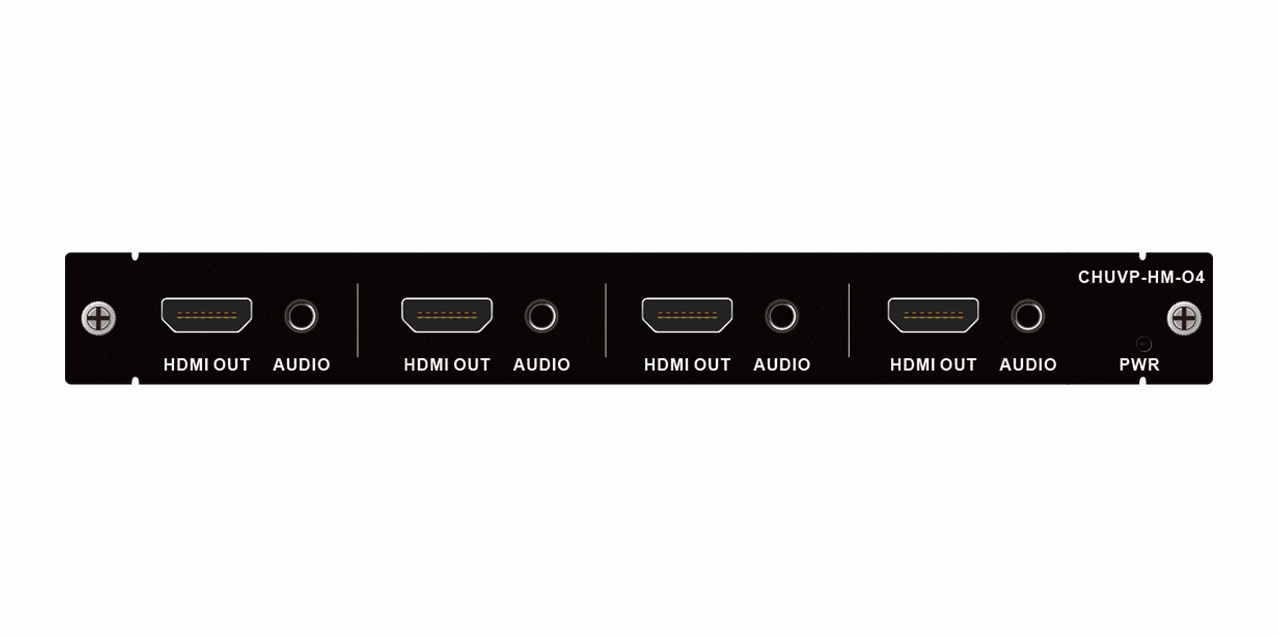

HDMI Seamless Output Board Card

Supports hot-swapping; supports analog audio output; supports simultaneous or independent switching of audio and video signals; supports EDID reading function; lossless transmission of YUV 4:4:4;

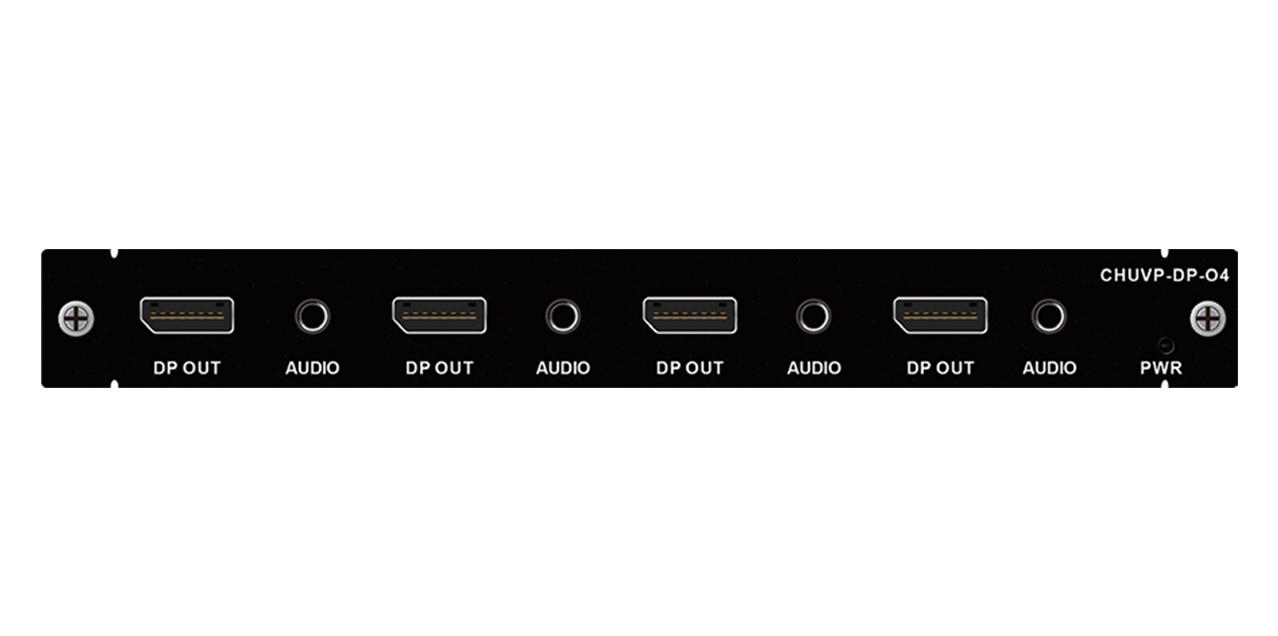

DP output board card

Supports hot-swapping; supports simultaneous or independent switching of audio and video signals; supports the DP 1.2 standard; supports 4 channels of 4096 x 2160 @ 60Hz resolution output;

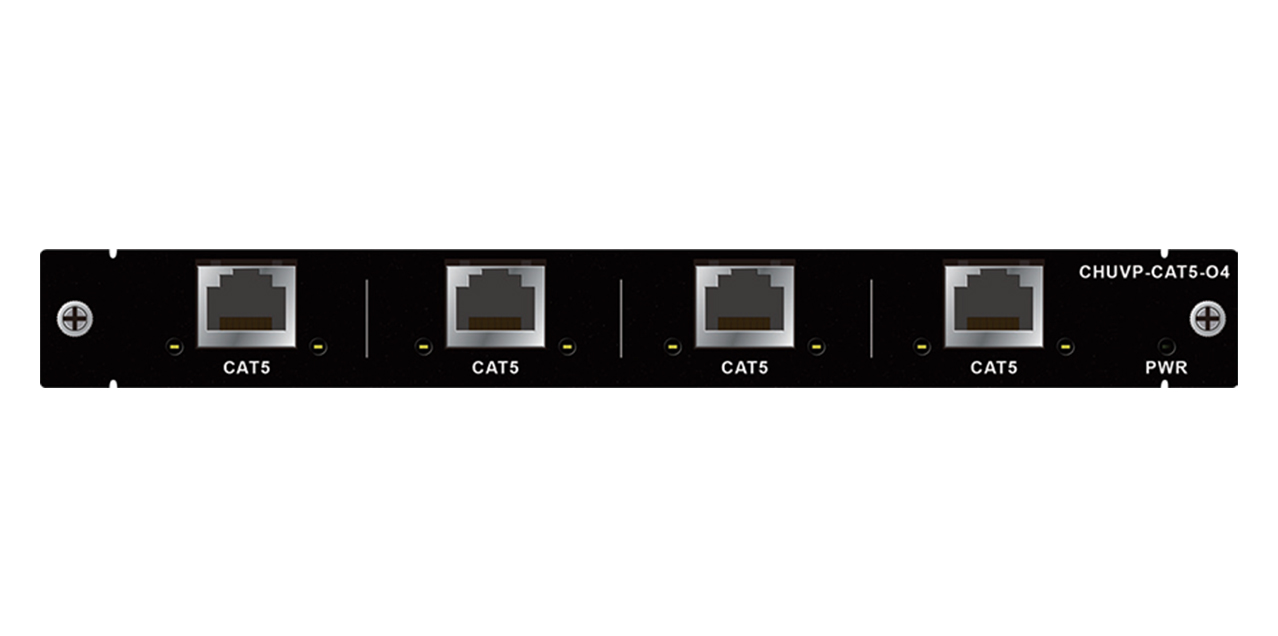

CAT5 output board card

Supports hot-swapping; when paired with a CAT5 transmitter, it enables long-distance transmission of output signals; supports 4 channels of 4096*2160@60Hz resolution output, YUV4:4:4 lossless transmission;
