Input board

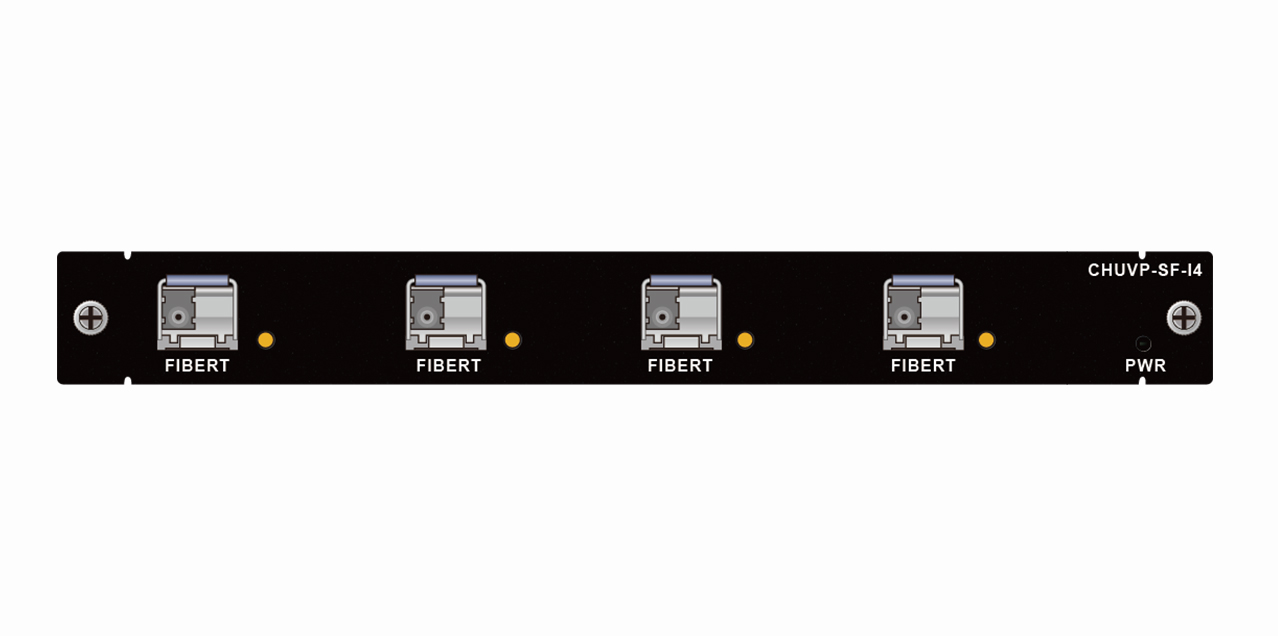

Fiber optic input board card

Supports 4 channels of 4096*2160@60Hz resolution input, YUV4:4:4 lossless transmission; resolution and frame rate are backward compatible; when used with a fiber optic transmission box, KVM functionality can be achieved;

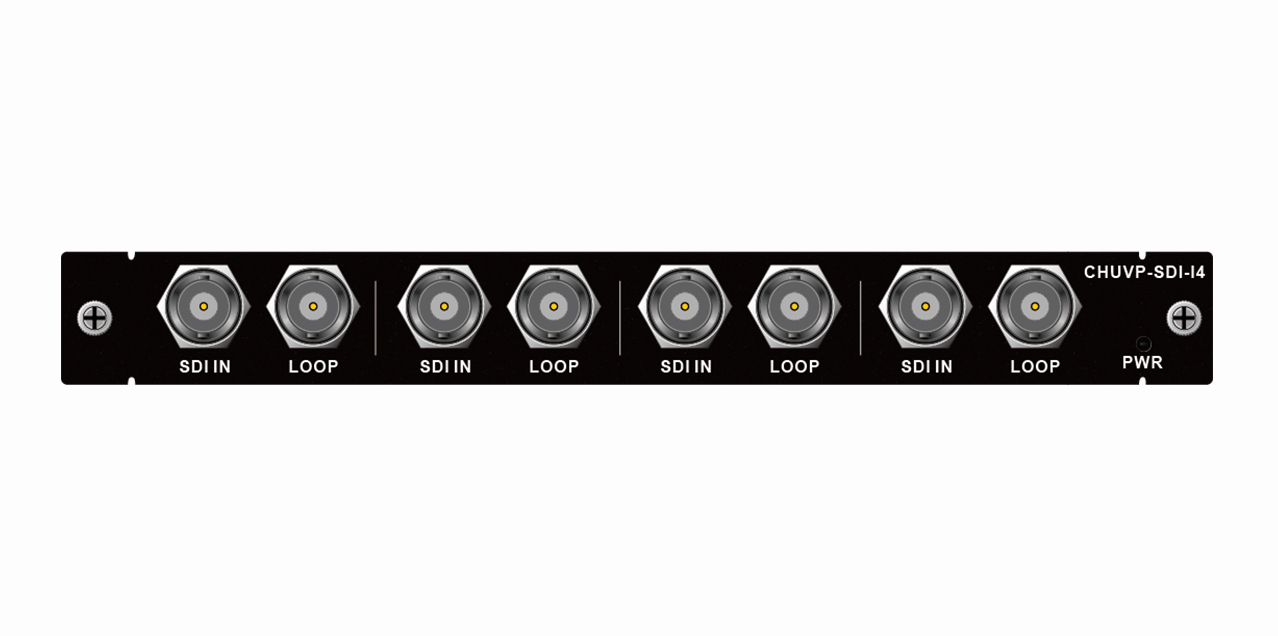

12G-SDI input board card

Supports 4 channels of 3480 x 2160 @ 60Hz, lossless transmission of YUV 4:4:4, with a transmission rate of no less than 12 Gbit/s for video input; resolution and frame rate are backward compatible with standard resolutions; supports hot-swapping;

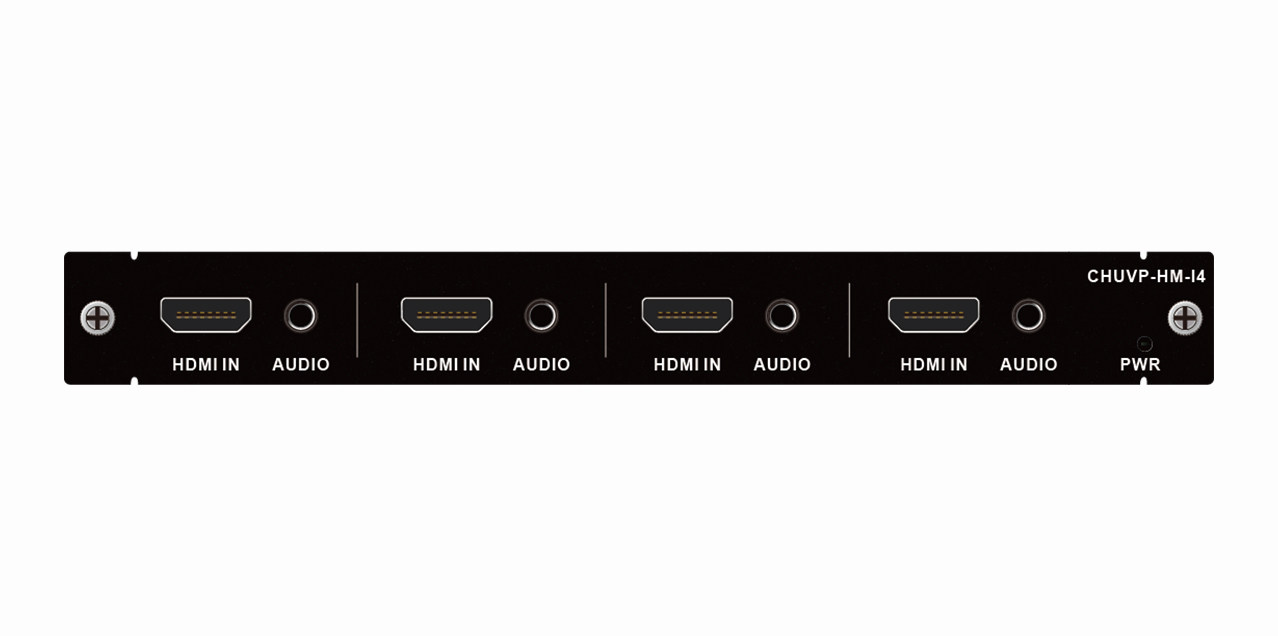

HDMI input board card

Supports 4 channels of 4096*2160@60Hz resolution input, YUV4:4:4 lossless transmission; supports simultaneous or independent switching of audio and video signals; supports hot swapping;

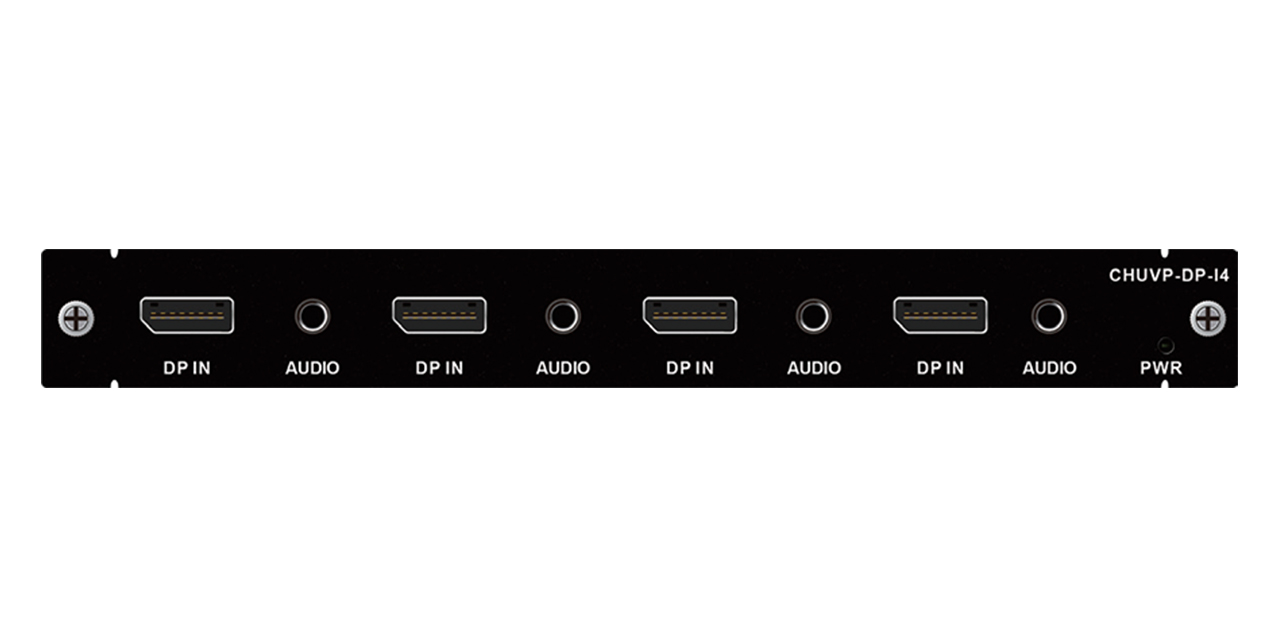

DP input board

Supports hot-swapping; supports analog audio input; supports simultaneous or independent switching of audio and video signals; lossless transmission of YUV 4:4:4; resolution and frame rate backward compatibility;

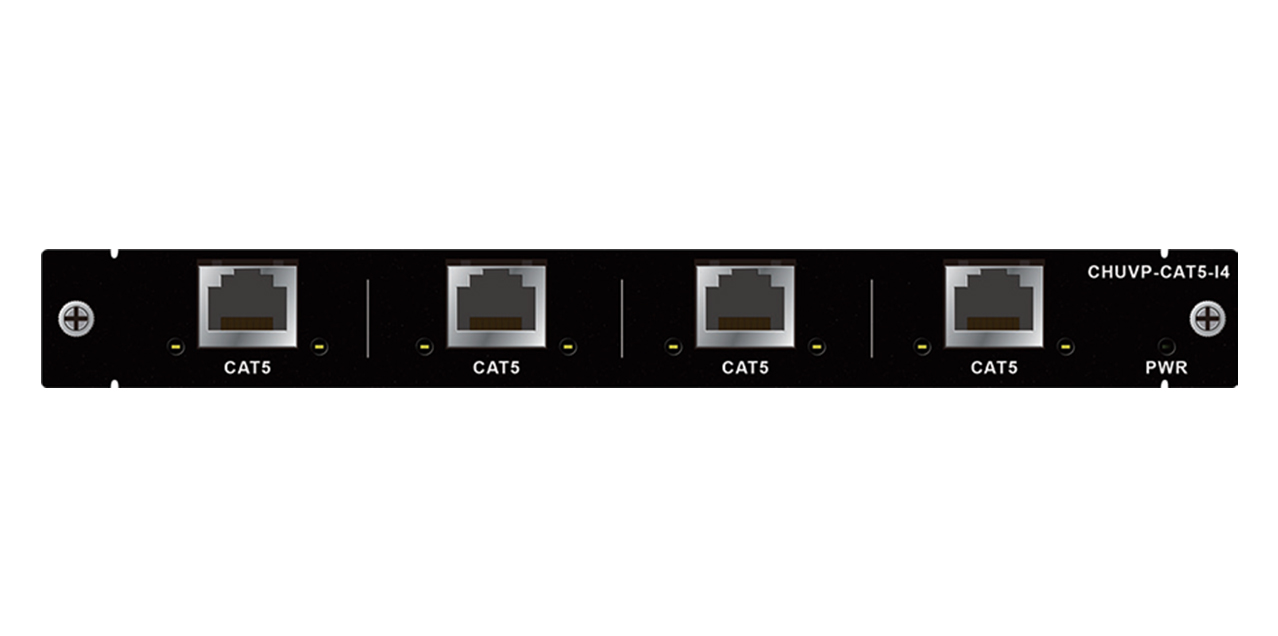

CAT5 input board

Supports 4 channels of 4096*2160@60Hz resolution input, YUV4:4:4 lossless transmission; resolution and frame rate backward compatible; supports hot swapping; CAT5 maximum transmission distance 100 meters;
